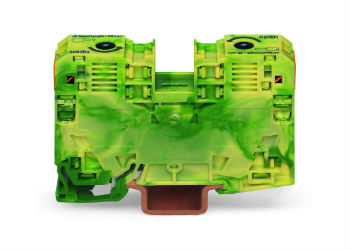

2-conductor ground terminal block; 35 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP
Product details
| Connection technology | POWER CAGE CLAMP |
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 6 … 35 mm² / 10 … 2 AWG |
| Fine-stranded conductor | 6 … 35 mm² / 10 … 2 AWG |

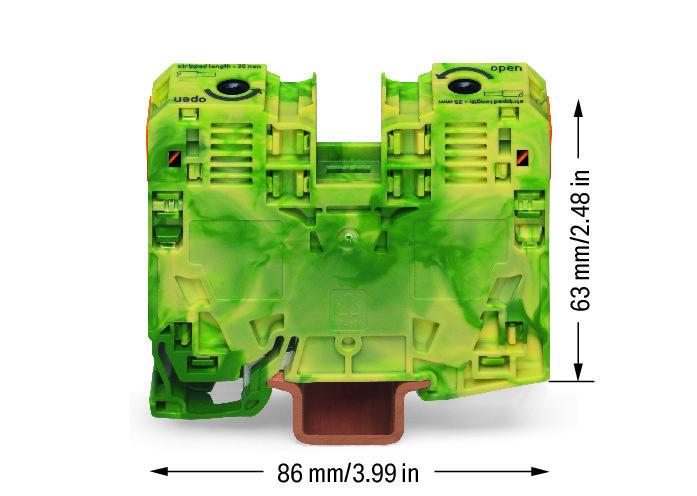

| Width | 16 mm / 0.63 in |
| Height from upper-edge of DIN-35 rail | 63 mm / 2.48 in |
| Depth | 86 mm / 3.386 in |
| Design | horizontal |
| Type of mounting | DIN-35 rail |
| Marking level | Side marking |
| Color | green-yellow |
| Insulating material | Polyamide 66 (PA 66) |
| Fire load | 1.209 MJ |
| Weight | 108.279 g |
| Country of Origin | PL |
| GTIN | 4045454507404 |
| Customs Tariff No. | 85369010000 |
| Product Group | 1 (Rail Mounted Terminal Blocks) |
